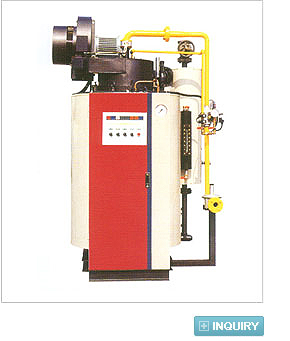

The multi-tube-type steam boiler is a fully automated boiler that can generate vapor very quickly and facilitate high pressure heat transfer.

Mycom on the panel indicates the status of error. Either electrical or mechanical.

A compact design and simple and safe structure.
A mini-boiler facilitates installation in a very small area.
A continuous blow device extends the lifecycle of the boiler.

Low preheating load and easy start-up.

Within 5 minutes after starting the boiler, vapor can be generated.
A small-size water purifier is installed to provide good quality water.
Model B&B-M 10 20 30 40 50 60 80 100 150 200 250 300
Rated evaporation kg/hr 100 200 300 400 500 600 800 1000 1500 2000 2500 3000
Max pressure kg/㎠ 10
Insulation area size ㎡ 2.6 3.9 4.9 4.99 4.99 9.5 9.7 9.88 9.99 21.5 24.8 29.7
Fuel con-
sumption		 B/C ℓ/hr 8.6 17 26 34 43 50 67 84 125 167 209 251
LNG N㎡/hr 7.7 15.3 23 30 38 45 60 75 112 150 187 225
Valve Main vapor A 20 25 25 32 32 40 50 50 65 80 80 80
Safety A 20(L) 25(L) 25(L) 25(L) 40(L) 40(L) 25(F) 25(F) 32(F) 32(F) 40(F) 40(F)
Water supply A 15 20 20 25 25 25 25 25 32 32 32 32
Water drainage A 25 25 25 25 25 25 25 25 25 25 25 25
Fuel B/C A 15 15 15 15 15 20 20 20 20 20 25 25
LNG A 25 25 25 25 25 25 25 25 40 40 50 50
operation weight kg 370 520 570 600 620 1500 1620 1720 1850 3150 4350 4850
Outlet gas duct Φmm 100 150 200 250 250 250 300 300 350 400 450 500
Installa-
tion exterior		 Width mm 770 770 870 870 870 1330 1330 1350 1380 1680 1850 1850
Depth mm 1200 1250 1450 1500 1500 1750 1750 1750 2050 2150 2550 2550
Height mm 1600 1950 2000 2150 2150 2250 2270 2280 2370 3150 3200 3400
1. These specifications are subject to change depending on the customer's request and for the purpose of quality improvement.
2. Gas supply pressure is 2,000~4,000 mmA1
3. Includes a burner, a control panel, a pressuring insertion fan, a noise suppressor, 2 units of water pump and a drug injector.
