Quick heating speed. Heating time reduced by 50%.

30% installation spaced saved. Uniform distribution of hot water temperature.


Energy saving type reducing operational time of the boiler

B&B-HW Hot bath capacity
ℓ/hr 		Tank capacity
ℓ

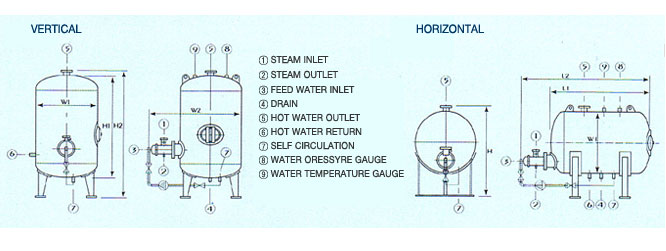

 Specifications (mm) Pipe connection hole   Convection pump
Φxkw
Inner diameter Width Length Height Steam Copper axis Water supply Water drainage Hot bath Half bath Safety
W1 W2 H1 H2 1 2 3 4 5 6 10
8V 800 580 800 1352 1288 1838 50 32 50 40 50 40 25 40x0.1
10V 1000 730 800 1352 1588 2138
15V 1500 1200 1000 1552 1666 2216 80
20V 2000 1400 1000 1552 1966 2516
30V 3000 2100 1200 1758 2062 2612 50 50 50x.02
40V 4000 2900 1300 1858 2400 2950 100 500 80 32
50V 5000 3400 1400 1958 2438 2988
60V 6000 4400 1400 2098 3038 3588 100 65 65x0.4
80V 8000 5800 1600 2298 3116 3666 125 65
100V 10000 7500 1900 2604 2844 3384
125V 12500 9000 2000 2724 3184 3734
150V 15000 11000 2300 2924 3260 3810
200V 20000 1400 2700 3044 3706 4256
250V 25000 17500 3000 3764 4064 4514 40 65x1.5
300V 30000 21000 3000 3964 4142 4692 150 80 100 65 125 80 50 80x2.2
B&B-HW Hot bath capacity
ℓ/hr 		Tank capacity
ℓ
 Specifications (mm) Pipe connection hole   Convection pump
Φxkw
Inner diameter Width Length Height Steam Copper axis Water supply Water drainage Hot bath Half bath Safety
W1 W2 H1 H2 1 2 3 4 5 6 10
8H 800 580 800 1828 1288 1362 50 32 50 40 50 40 25 40x0.1
10H 1000 730 800 2128 1588 1362
15H 1500 1200 1000 1162 2206 2216 80
20H 2000 1400 1000 2506 1966 1768
30H 3000 2100 1200 2606 2062 1768 50 50 50x.02
40H 4000 2900 1300 2940 2400 1868 100 500 80 32
50H 5000 3400 1400 2978 2438 1968
60H 6000 4400 1400 3796 3116 2168 100 65 65x0.4
80H 8000 5800 1600 3524 2844 2474 125 65
100H 10000 7500 1900 3884 3184 2574
125H 12500 9000 2000 3960 3260 3774
150H 15000 11000 2300 4426 3706 2874
200H 20000 1400 2700 4426 3706 2874
250H 25000 17500 3000 4804 4064 3024 40 65x1.5
300H 30000 21000 3000 8824 4142 3224 150 80 100 65 125 80 50 80x2.2
1. These specifications are subject to change depending on the customer's request and for the purpose of quality improvement.
