	The thermal oil boiler allows you to achieve high temperatures (350℃) at low pressure and there is no danger of explosion by high pressure.

	The thermal oil circulates in a closed cycle with less thermal loss and no necessity for water supply or drainage.

	The thermal oil is indirectly heated by liquid and forced to circulate in the system. It can maintain the homogenous temperature distribution without local degradation of temperature.

	It can be easily applied to any area where thermal oil can be circulated.

	If necessary, you can easily adjust the thermal capacity and temperature.

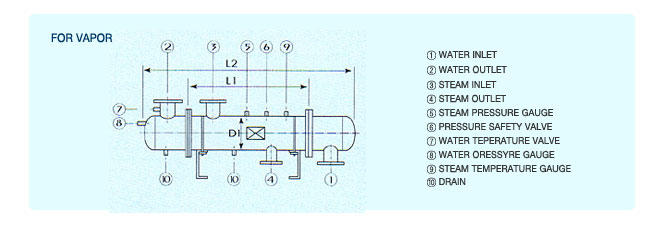

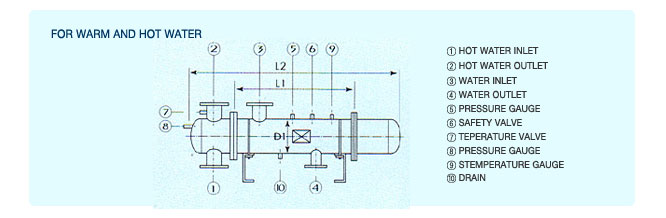

Gapacity	B&B-HE SIZE		Insulation area size	Pressure loss	Steam consumption	Amount of hot water circulation	Diameter of the pipe
Thermal capacity	Diameter x length	length	Insulation area size	Pressure loss	Steam consumption	Amount of hot water circulation	Hot water	Steam
kcal/hr	DxL1	L2	㎡	kg/㎠	kg/hr	㎡/hr	①② IN/OUT	③IN	④OUT
100000	125x1000	1360	0.84	0.079	180	10	50	50	25
200000	150x1000	1580	1.39	0.079	360	20	80	80	40
300000	200x1000	1660	2.24	0.079	540	30	100	80	40
400000	200x1200	1860	3.17	0.0685	720	40	100	100	50
500000	250x1000	1740	3.69	0.0687	900	500	125	100	50
600000	250x1000	1740	3.429	0.0687	1080	60	125	100	50
700000	250x1200	1940	5.15	0.0687	1260	70	125	125	65
800000	250x1500	2060	5.64	0.068	1440	80	150	125	65
900000	300x1200	2100	6.34	0.0684	1620	90	150	125	65
1000000	300x1200	2100	7.24	0.176	1800	100	150	125	65
1250000	350x1200	2120	8.92	0.153	2250	125	200	150	80
1500000	350x1200	2200	10.23	0.12	2700	150	200	150	80
2000000	400x1200	2220	14.18	0.126	3600	200	250	200	100
